60m / dn50 - 400mm Push Rod Camera System Set
Tax excluded. Shipping calculated at checkout
Pipe Camera 60m / DN50 - 400mm Push System in Set
PRICE ON REQUEST!
Our all-round pipe camera offers versatile options for your inspection needs. From data entry in videos and photos to a variety of text, storage, and template functions, the MSE-200 PRO is intuitive to operate while being a true inspection unit. The pipe camera system was developed for rehabilitation, house connection, and sewer inspection. Here you get a quality product "Made in Germany," developed and manufactured in Germany. Robust and durable.

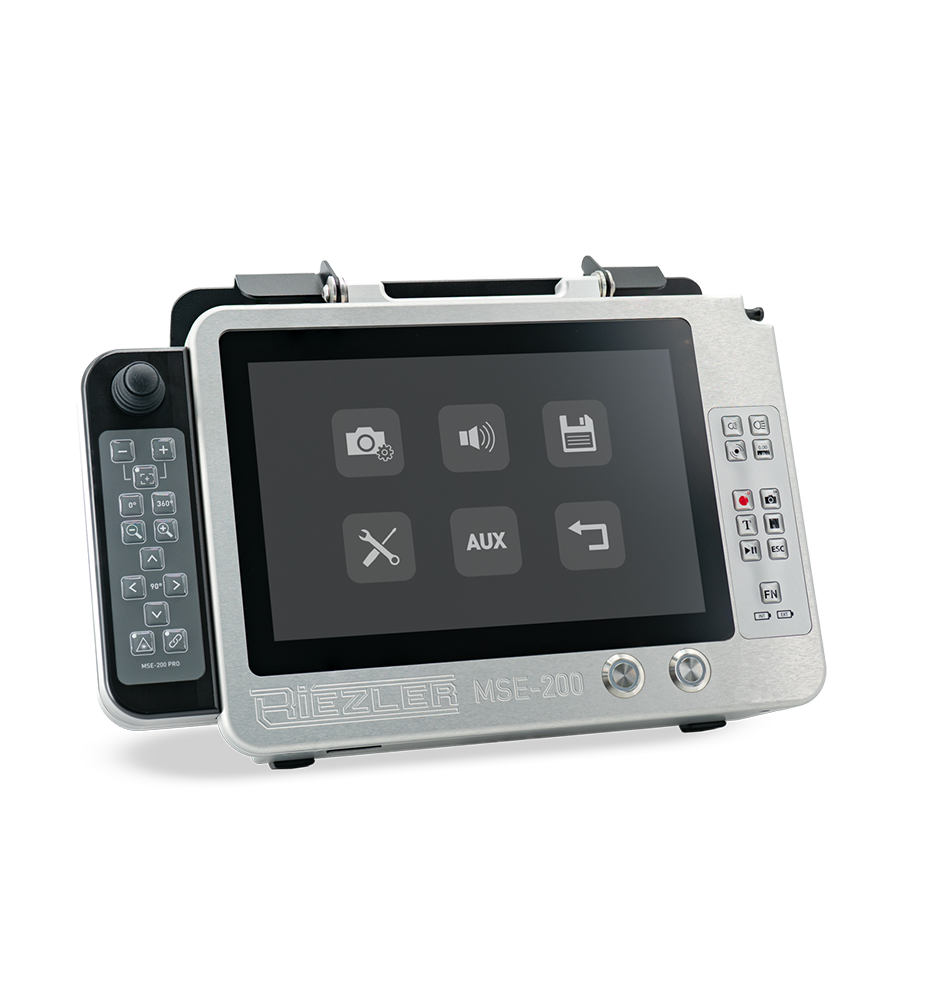

Control Unit MSE-200 PRO:
- Splash-proof aluminum housing with passive cooling technology
- Daylight-compatible 10.1-inch display with 16:9 aspect ratio (WXGA / 1280x800 pixels)
- Anti-glare PCAP touchscreen
- Integrated video recorder with still image function and WIFI streaming
- Videos and images are recorded on an internal 64 GB memory.
Recordings can be saved and exported to a USB stick. - Data entry and digital meter counting with display in the video image
- Display of sensor values
(rotation and pan angle in degrees, internal pressure in bar with alarm function...) - Prepared for Full HD cameras and backward compatible with our SD cameras
- PRO control panel suitable for pan-and-tilt cameras
- Built-in Li-ion battery with charger and charge level indicator
- Interfaces: 1x USB for data export
Reel SHP-9X:
- stable, sturdy reel made of stainless steel
- Usable from DN 50 to DN 400
- 87° bend-compatible from DN 90 (depending on the camera head used)
- waterproof and ball-bearing axle
- 60 / 80 meters of highly flexible push cable (9 mm Ø)
- Quick-change system for pluggable camera heads and control units
- trouble-free slip ring
- Integrated digital meter counting
- switchable return brake (prevents unintentional unwinding of the push cable)
- Removable reel wheels for easier transport

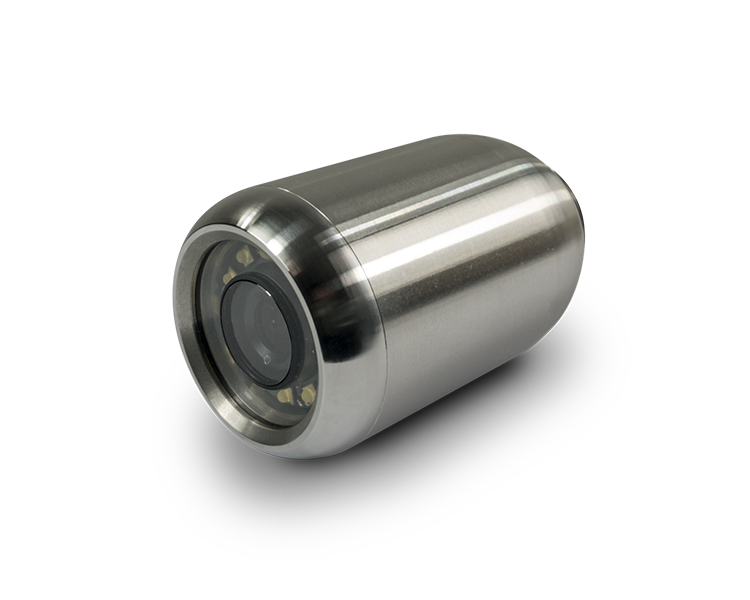

Camera Head RIK-45:
- pluggable camera head made of stainless steel
(45 mm diameter, 70 mm length) - Permanently upright image (Rollmatic)
- Weight: approx. 450 g
- waterproof up to 20 bar
- high-performance cold light LEDs (12 ultra-bright LEDs)
- high-resolution color camera module (700 lines)
- Wide-angle lens: 85°
- Focus: Fixed focus (10 - ∞ cm)
Technical advice is available via our contact form or by phone! We offer all spare parts for the machine as well as any maintenance or repair on request! ACCESSORIES ON REQUEST!
Scope of delivery: Camera head RIK-45, camera protective cap, reel SHP-9X, connection cable 3 meters, connector protective cap, control unit MSE-200 PRO, SDHC 16GB memory card, plug-in power supply 24V / 2.71A, power supply adapter set, BNC lab cable 2 meters, car device connection cable
Do you have any questions or need a customized offer? You can make a non-binding inquiry here.
