Pipe Camera 30m / DN40 - 150mm Push System in Set

Pipe Camera 30m / dn40 - 150mm Push System in Set

The control unit of the pipe camera MSE-100 is very well equipped for its size and offers all necessary functions for recording and storing inspection videos and photos. This makes everyday use simple, cost-effective and flexible. Especially for beginners or as a small and mobile unit, the MSE-100 is the best solution. The pipe camera system was developed for electrical installation, sanitary or house connection. Here you get a quality product "Made in Germany" developed and manufactured in Germany.

Control unit MSE 100:

• Sturdy, impact-resistant housing with sun visor

• Controls for camera and video recorder

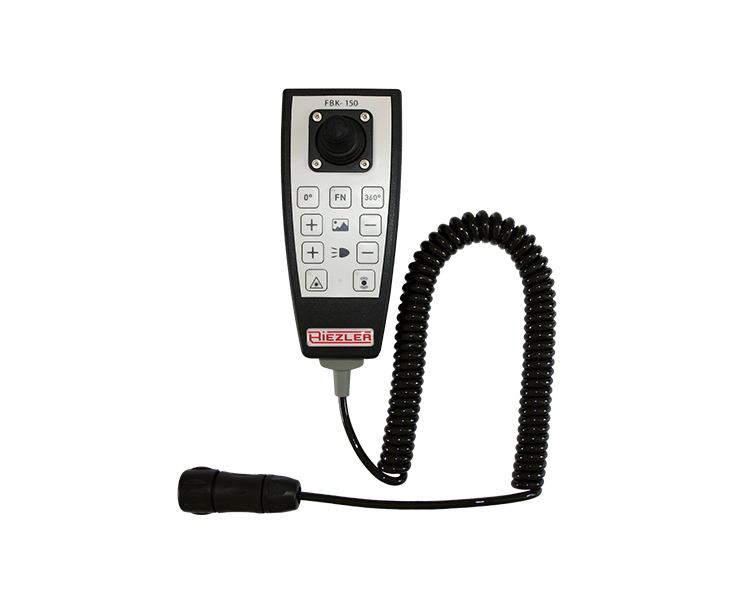

• Expandable for pan-and-tilt cameras with a remote control

• High-resolution, bright 5.6 inch TFT display

• Integrated MPEG4 video recorder (avi) with single image function (bmp)

• Videos and images are recorded on an SD card

• Digital meter counter with display in the video image

• Display of sensor values ​​(rotation and pan angle in degrees, internal pressure in bar with alarm function)

• Li-ion battery with built-in charger and charge status indicator

• 12-24 V socket for car operation

• Microphone jack for voice recording

• Interfaces: 1 x BNC Video IN, 1 x BNC Video OUT

Reel SHP-6X:

• Sturdy, galvanized and powder-coated steel reel

• Stable ball joint with quick-change system for the control unit

• 30 meters highly flexible push cable (6 mm Ø)

• prepared for plug-in camera heads

• infinitely adjustable brake

• Precise length measurement by integrated pulse generator

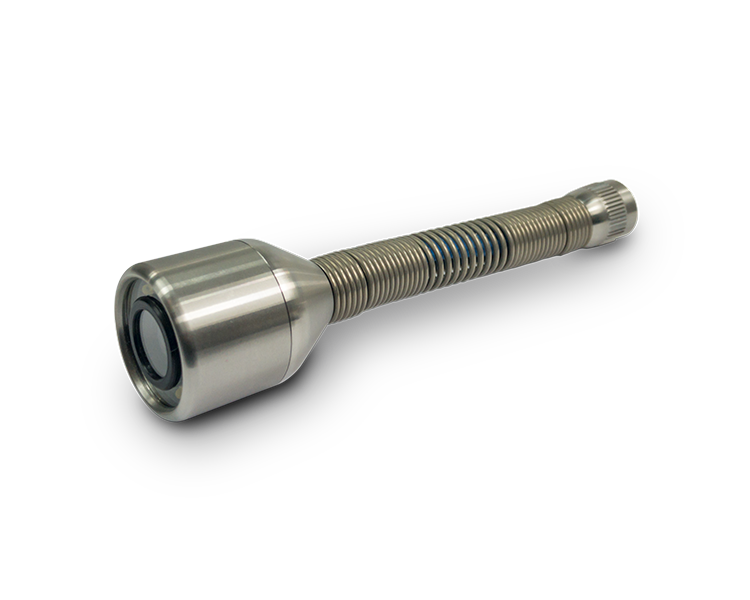

Camera head:

• pluggable camera head made of stainless steel (32 mm diameter, 40 mm length)

• optionally with ROLLMATIC (permanently upright image) or without
• can be used from DN 40 to DN 150

• 87° bendable from DN 50
• waterproof up to 3 bar

• high-performance cold light LEDs (9 ultra-bright LEDs)

• Image sensor: 1/4" color CMOS

• high-resolution color camera module (420 lines)

• Wide-angle lens: 90°

• Focus: Fixed focus

Technical advice is available via our contact form or by phone! We offer all spare parts for the machine as well as possible maintenance or repair on request! ACCESSORIES ON REQUEST!

Scope of delivery: Camera head RIK-3240 (PAL) or RIK-3240/RO, protective cap camera, reel SHP-6X, connection cable 3 meters, protective cap plug, control unit MSE-100, memory card SDHC 16GB, plug power supply 24V / 2.71A, power supply adapter set, BNC laboratory cable 2 meters, car device connection cable
